Plastic Level Switch
The plastic float level switch is widely used in the household application .It has many features ,like the small size , simple working principle ,highly reliable and low cost .Working temperature :-20 degree to +80 degree.
Product Details
The plastic float level switch is widely used in the household application .It has many features ,like the small size , simple working principle ,highly reliable and low cost .Working temperature :-20 degree to +80 degree.
The LS02 series ,LS03 and LS19 series were widely used on water dispenser and Air conditioning .More applications is available .
Type | LS01 | LS02 | LS02S | LS03 | LS04 | LS05 | LS19 |
Size(mm） | M8*L37 | M8*L43 | L42.5 | M8*L53 | M10*L100 | M10*L75 | Rectangular M8 tread |
Contact rating | 10W | 10W/50W | 10W/50W | 10W/50W | 10W/50W | 10W/50W | 10W/50W |
Voltage | 200VDC/300VDC | 200VDC/300VDC | 200VDC/300VDC | 200VDC/300VDC | 200VDC/300VDC | 200VDC/300VDC | 200VDC/300VDC |
Current | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A |
The LS01 is the smallest type in our standard products .This switch used in single level detection and be mounted vertical form the tank top and buttom.M8 mounting screw and 37mm length .
The LS04 and LS05 can designed one or tow level points , mounted vertical form the tank top and buttom.10W and 50W rated power can provide .
Operation Demonstration:

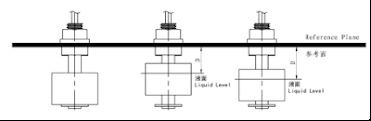

Typical operation as illustrated below
Customer can define activated distance "D"
